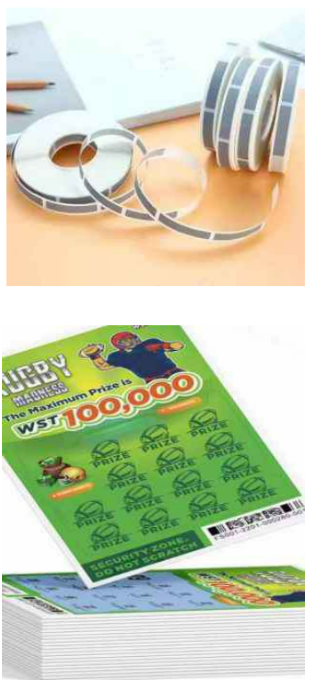

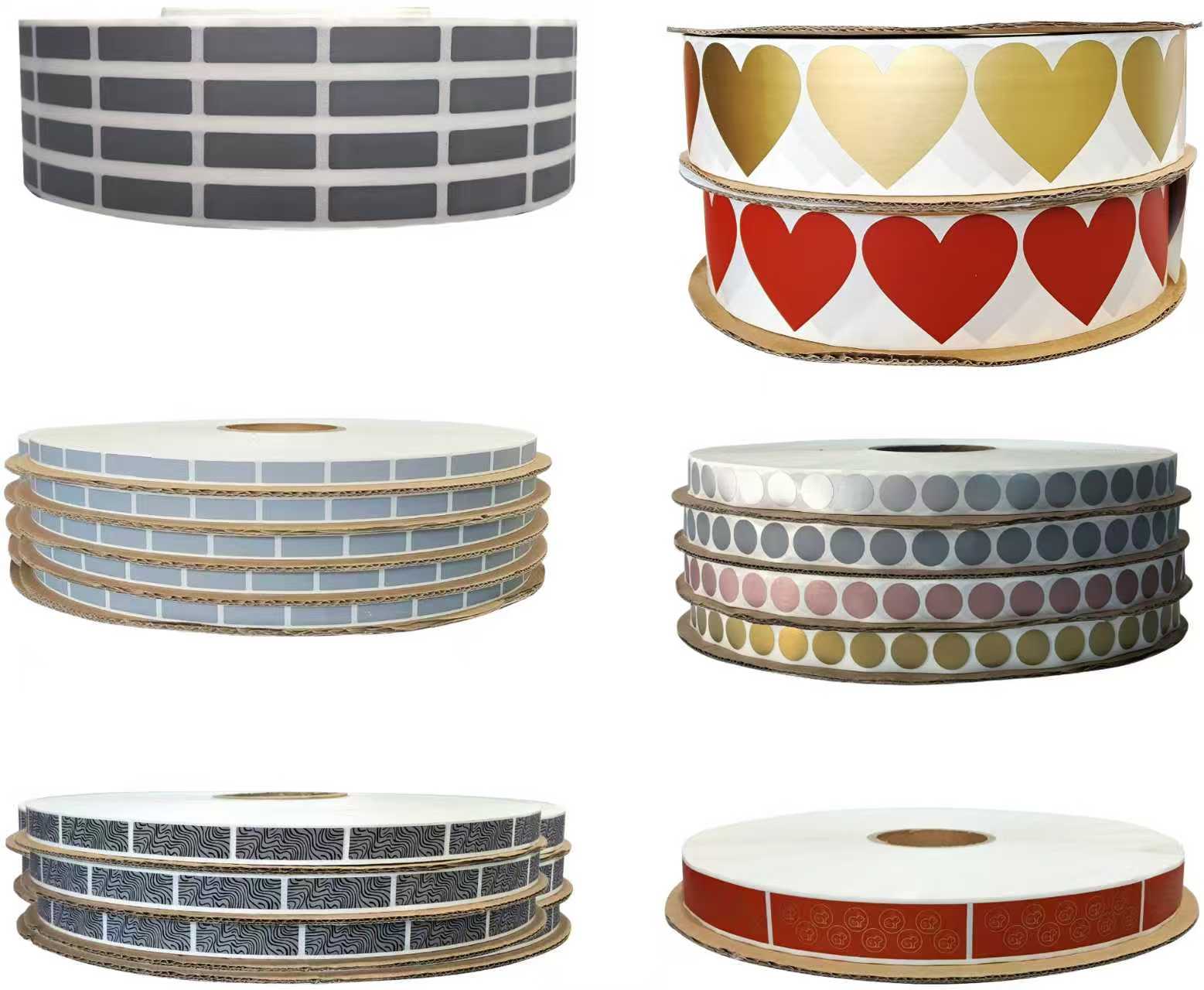

Suitable for outer packaging such as cardboard, paper, cigarettes, alcohol, cosmetics, labels, and glossy film/V-varnish finishes for books and greeting cards.
Fast UV curing, solvent-free, environmentally friendly.
Excellent adhesion, abrasion resistance, scratch resistance, and smoothness.
Excellent printing adaptability and leveling.
1. Viscosity at 25°C, cps: 2500-5000 cps
2. Fineness: <5µm
3. Cure Speed: (8000W/cm2 x 2-3 Hg Lamps): 15-55mm
4. Printing Screen: 100 lines. Flexo Printing (Two Passes), Offset Printing (Two Passes) Rotary printing (2 passes)
The substrate must be coated with a PET film or printed with a UV primer (the UV primer must be completely dry before printing with a UV scratch-off primer).
The UV curing machine typically uses 5.6-8kV UV lamps, 2-3 high-voltage multiplying lamps (wavelength 300-400nm), and a conveyor belt speed of 15-55m/min.
This product can be used directly; do not add other non-compatible inks or thinners. Stir thoroughly before use. After printing, seal and store.
When printing on dark inks or substrates, cure the ink immediately after printing, which may take longer. Ensure complete curing to prevent sticking.
After printing, thoroughly clean the screen with an ester, saponin, or ketone solvent. Wait until the solvent has completely evaporated before printing again.
UV inks should be stored in a cool, well-ventilated area away from sunlight. The shelf life is generally three months at 5°C-25°C. Do not mix used ink with unused ink.
